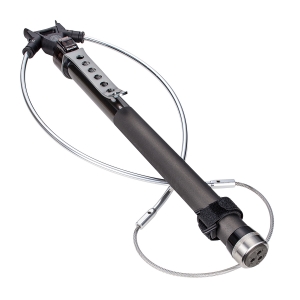

Provided with an eight system that will automatically open to a circle with a diameter of 38 cm while reversing itself 180° by just applying recoil to the shaft. In addition, a shaft lock switch is provided to control shaft casting with just a single touch of the switch with a single hand in a standing posture for speedy landing.
Ideal for light tackle games, such as rockfish and bay-area black porgy games.
Possible to replace the gaff with an option with Gaff SS specifications (with a total length of 47 cm) for Egi (wood lure) fishing.
Provided with a 38-cm nylon monofilament net (with 15-mm fine mesh) and dedicated storage bag.

※Auto King Frame 38-350T Red・Yellow have gone discontinued. Now selling only parts. Thank you for kind understanding.

Auto King Frame 38-350T　Gunmetal　¥23,000(JPY)

SPEC

● Shaft collapsed size: 42 cm; total length: 300 cm; weight: 240 g (9 sections)
● Shaft (with the 38-cm frame attached); collapsed size: 50 cm; total length: 350 cm; shaft material: 100% medium-elastic carbon
● Frame: 38 cm in size; collapsed size: 17 cm × 48 cm; weight: 160 g
● Frame: 38 cm in size; collapsed size: 38 cm × 40 cm; weight: 20 g
● Shaft lock switch weight: 17 g
● Lock attachment weight: 14 g
● Hanger weight: 16 g
● Total weight with hanger attached: 475 g
● D-ring weight: 8 g
● Accessory: Dedicated storage case
Shaft, frame, and net/MADE IN CHINA
Shaft lock switch/Lock attachment/MADE IN JAPAN

Fold type of eight system

Provided with an eight system that will automatically open in a circle with a diameter of 38 cm while reversing itself 180° by just applying recoil to the shaft.
Incorporating an aluminum frame with stainless steel wire, and the moving part employs a special resin with 40% carbon fiber to ensure strength and lightness.
Lower the slide stopper and reverse the product 180° when folding it.

Shaft Lock Switch

Unlike conventional rubber stoppers, the lock attachment on the shaft is secured with the shaft lock switch, which will prevent the lock attachment from spinning or jumping out suddenly.
By sliding the switch from LOCK to PUSH and pushing the switch will unlock the shaft for casting.
* The static load capacity of the switch in the LOCK state is 8 kg.
At the time of landing from the accommodated state of the shaft, be sure to press the switch firmly with your fingers so that the switch will not move.

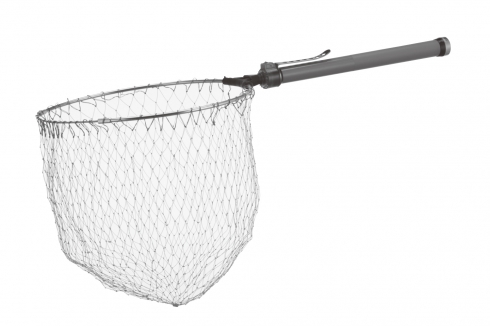

Provided with a 38 cm (15 inches/US size) net as a standard accessory.

Mounted to the frame with highly-durable lily yarn with a V-shaped cut, and the net material uses a strong nylon monofilament (silk gut) that withstand twisting.
Minimizing the entanglement of the net when the frame opens automatically, thus achieving smooth opening and closing.
Adopting a nylon monofilament (silk gut) that is strong against rubbing as net material.
Minimizing the entanglement of the net when the frame opens automatically, thus achieving smooth opening and closing.
(The installation method is described in the manual.)

Set content

Landing net & Gaff 2-way Design One Hand Quick Landing system
The auto king frame and shaft lock switch can be easily attached or detached with a screw system. Replaceable with the Auto King Gaff (option), which will make the gaff pop out automatically by casting the gaff strongly, by pushing the release button with a one-push safety cover.

Hanger Style
The hanger can be mounted to your belt or tackle vest (by just hanging), thus making it possible to go into a landing position instantaneously.

3D view

Drag the mouse sideways on the image to rotate the image.

Drag the mouse sideways on the image to rotate the image.

FAQ

• The Shaft of the Auto King Gaff/Frame has been broken. Is it possible to repair it? If yes, tell me the approximate cost.

Product No	Product name	Price (excluding tax)	quantity	To shopping cart	parts
32085	Auto King Frame 38-350T　Gunmetal	¥23,000(JPY)		Add to cart	parts
32086	Auto King Frame 38-350T　Yellow 【discontinued】	¥23,000(JPY)		Out of stock	parts
32116	Auto King Frame 38-350T　Red 【discontinued】	¥23,000(JPY)		Out of stock	parts
