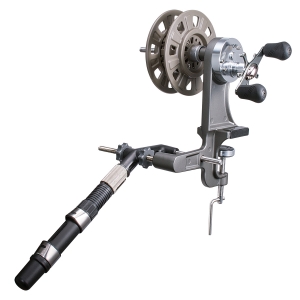

Recycler DS Full Equipment

Easy winding with a double spool and reel mounting sheet.
A longer lasting PE line with a salt drain function.

Incorporating a high-speed 4x double handle and four ball bearings.
The die-cast clamp realizes super smooth transformation without axial wobbling.
Provided with a reel mounting seat for ease of reel winding and rewinding.

Provided with a desalinating extensible spool and dewatering pack makes PE desalinating cleaning after use so that the PE line will last longer.

Recycler DS Full Equipment (¥22,000(JPY))

Easy winding with a double spool and reel mounting sheet.
A longer lasting PE line with a salt drain function.

Incorporating a high-speed 4x double handle and four ball bearings.
The die-cast clamp realizes super smooth transformation without axial wobbling.
Provided with a reel mounting seat for ease of reel winding and rewinding.

Provided with a desalinating extensible spool and dewatering pack makes PE desalinating cleaning after use so that the PE line will last longer.

SPEC
● Storage size (when accommodated in provided dry bag): 260 × 240 × 150 mm
● Max. clamp mounting width: 43 mm
● Gear ratio: 4.08:1
● Weight: 665 g (main part), 160 g (desalinating extensible spool), and 195 g (reel attachment sheet)
● Practical maximum drag force: 3 kg (measured with a spool diameter of 70 mm)
● Shaft size: 8 dia. × 105 mm (top); 8 dia. × 115 mm (bottom)
● Practical standard winding volume of desalinating extensible spool: PE No. 4: 400 m, PE No. 5: 350 m, PE 6: No. 300 m, and PE No. 8: 200 m
(Practical standard winding volume is the standard amount of winding that can be used without stretching function of the desalinating extensible spool without line trouble.)
● Accessories: Desalinating extensible spool (spool outer diameter: 125 mm), reel mounting sheet, nine aluminum collars (four types), four tightening nuts, line rod guide ring, tension spring, two SUS washers, three locking urethane washers, dehydration pack, storage dry bag, Teflon washer, and hexagonal wrench

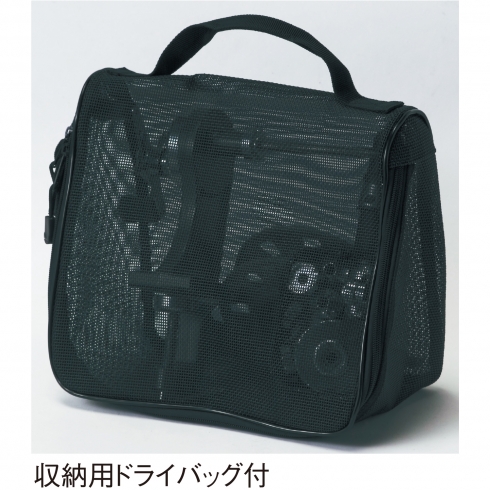

Die-casting for main body and dry bag for storage/MADE IN CHINA
Body assembly, desalinating spool, and package/MADE IN JAPAN
Detail 1

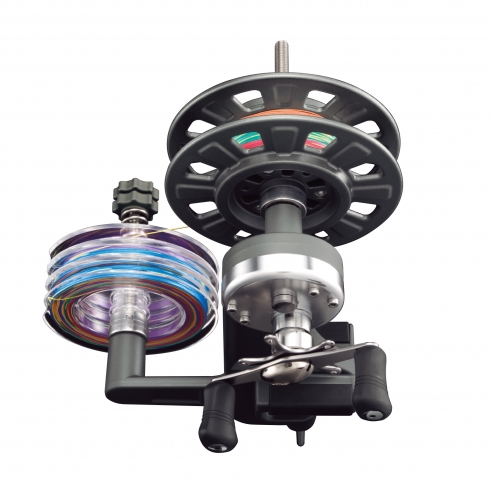

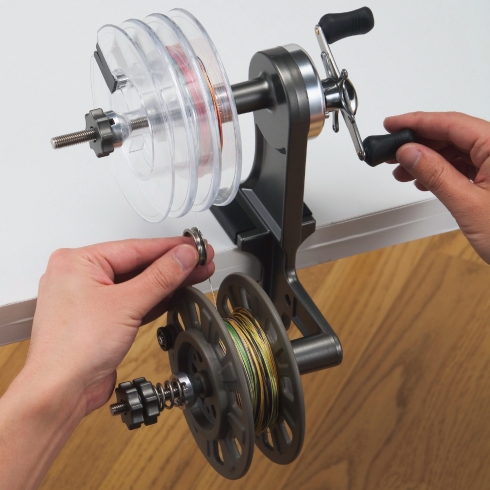

As its name implies, the double spool (DS) can set spools on two shafts, and wind up new lines, rewind them on empty spools, reversely rewind or store damaged lines.
Provided with a desalinating extensible spool and dewatering pack makes PE desalinating cleaning after use so that the PE line will last longer.
Detail 2

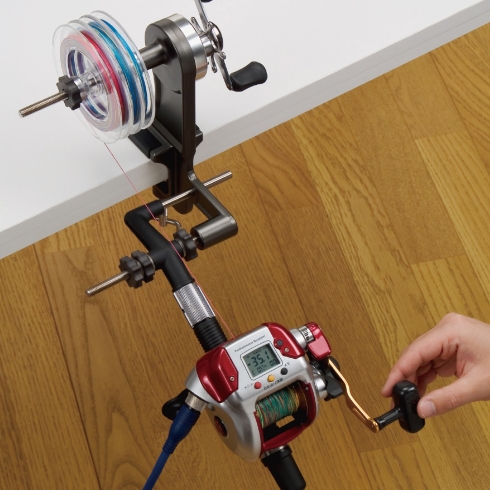

• Example of winding a new line to a bait reel

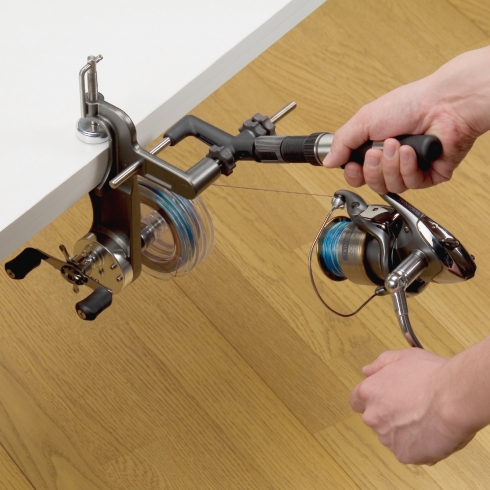

• Example of winding a new line to spinning reel (attaching the clamp upside down for spinning)
Detail3

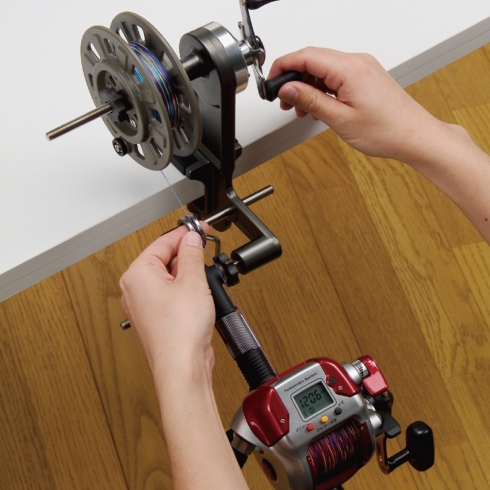

• Example of rewinding from the reel to the desalinating extensible spool

• Example of reverse rewinding from the desalinating extensible spool to an empty spool
Desalinating function 1
A longer lasting PE line with a salt drain function.

● How to use the desalinating extensible spool
The PE line lasts longer if you sometimes desalinate it (e.g., immersing it in lukewarm water). In the case of conventional spools, it was possible to desalinate only the surface areas and the inner part of the lines was not desalinated.
The desalinating extensible spool makes it possible to expand or contract the inner diameter of the spool after rewinding, thus making it possible to loosen the line.
This makes inner line clearances that allow lukewarm water to pass smoothly for better desalination.

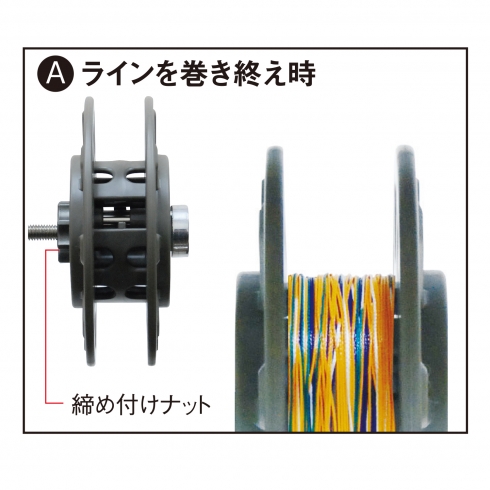

1) Wind the PE line on the extensible spool.

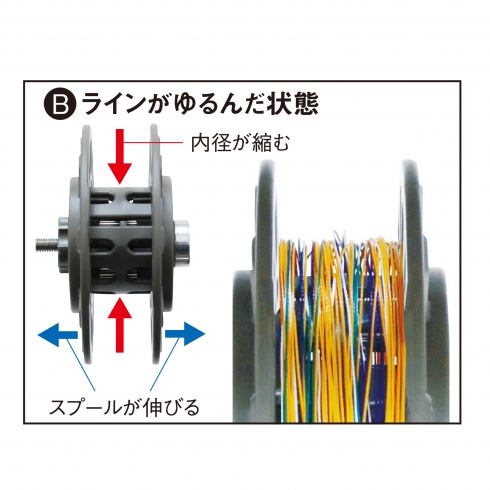

2) The inner diameter shrinks, and inner line clearances will be made by loosening the tightening nut.
Loosening the tightening nut reduces the inner diameter of the extensible spool, and the line becomes loose because the spool width extends.
Desalinating function 2

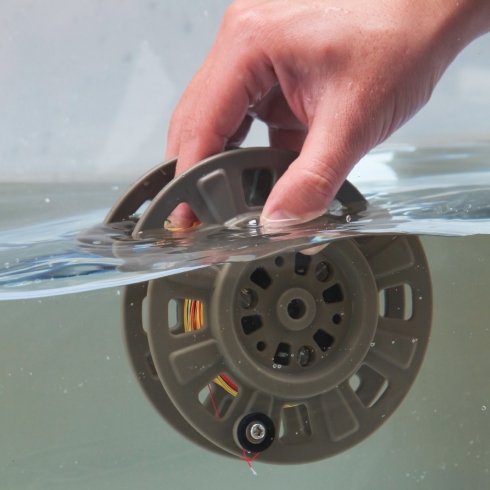

3) Remove the extensible spool and wash the line with water.

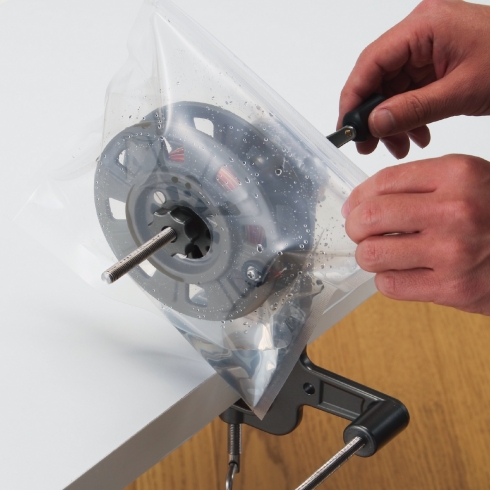

4) After attaching the dehydration pack, power dehydration will be possible by centrifugal force.
