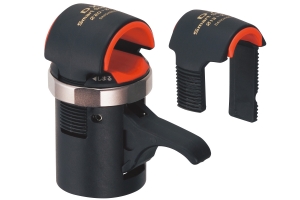

DX Smart Support

A neat style with a smart head with no protrusion that does not hurt.
Achieved a 30% lighter weight in comparison with conventional products (DX Support).
Two types of smart heads are provided (i.e., 13 to 20 mm dia. and 20 to 32 mm dia.), either one of which can be replaced according to the rod diameter.

Press fit the support from above. Be sure to press fit the support securely until a crack sound is heard.
Pull up the lever with your fingertips while holding the rod to detach and attach the support.

DX Smart Support  ¥3,700(JPY)

A neat style with a smart head with no protrusion that does not hurt.
Achieved a 30% lighter weight in comparison with conventional products (DX Support).
Two types of smart heads are provided (i.e., 13 to 20 mm dia. and 20 to 32 mm dia.), either one of which can be replaced according to the rod diameter.

Press fit the support from above. Be sure to press fit the support securely until a crack sound is heard.
Pull up the lever with your fingertips while holding the rod to detach and attach the support.

SPEC
● Storage size (with dry pouch for storage): 90 × 115 × 50 mm
● Weight: 175 g (when accommodated in the storage pouch, including a large smart head, a small smart head, and dedicated wrench for smart head change)
● Accessories: Dry pouch for storage, large smart head (rod diameter of 20 to 32), small smart head (rod diameter of 13 to 20), dedicated wrench for smart head change
MADE IN JAPAN

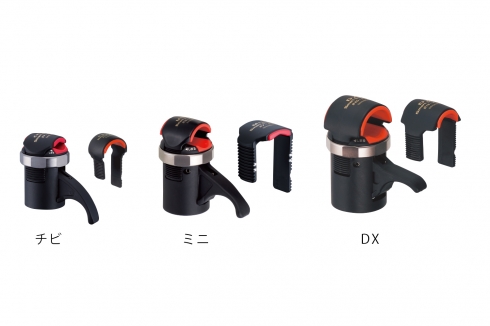

Size comparison and compatible models
● Models compatible with Chibi Support: Chibi Lark,Chibi Lark Long,Chibi Lark Super Long, Chibi Lark-type S,Chibi Lark long-type S, Lark900, and Chibi Lark GB
● Models compatible with Mini Support: Mini Lark, Mini Lark-type S, Light Lark, Free Lark, One-touch Lark Mini, and Lark 1700
● Models compatible with DX Support: High Lark16,High Lark18,High Lark16DX,High Lark18DX, Super Lark,Super Lark Long, Shakuri Lark, Shakuri Lark Long, One-touch Lark DX, Lark300, Lark1800, Lark2000, Lark2200, Lark2500, and Lark Piton
● Model compatible with Ultra Saikyo Support: Ultra Saikyo Lark 2
Mounting method
Rod mounting method
1. Turn and loosen the lock ring so that the smart head will move up.
2. One side will come out of the lock ring. Fold and insert the rod, align the thread so that the smart head will go down horizontally, and turn the lock ring to tighten and secure the rod.
(If the lock ring becomes hard while tightening it, the screw thread is not lining up with its receiving thread. Loosen the screw and try again.)
3. Use the provided wrench to secure the rod tightly if necessary. (Overtightening will damage the rod.)
4. Change the smart head according to the rod diameter. (The rod can be removed when the lock ring is fully loosened.)

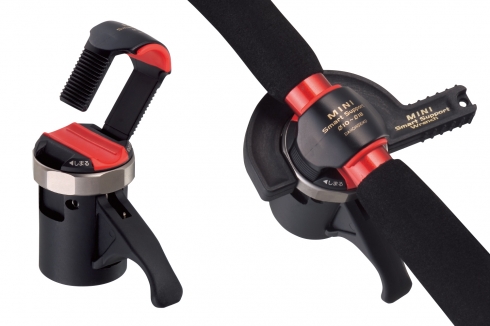

(The picture shows the Mini Smart Support. The same method applies to the DX Smart Support.)
3D view
Drag the mouse sideways on the image to rotate the image.
Drag the mouse sideways on the image to rotate the image.

スクロールはこちら
We can not accept your order from some countries at present because international post services are stopped due to COVID19 . If you can not choose your country during the order process, it means that the international post services do not accept the parcel to your country at the moment. Thank you for your kind understanding.
Product No Product name Price
(excluding tax)
quantity To shopping cart parts
09184 DX Smart Support  ¥3,700(JPY)
