Kasa Catch NO.7

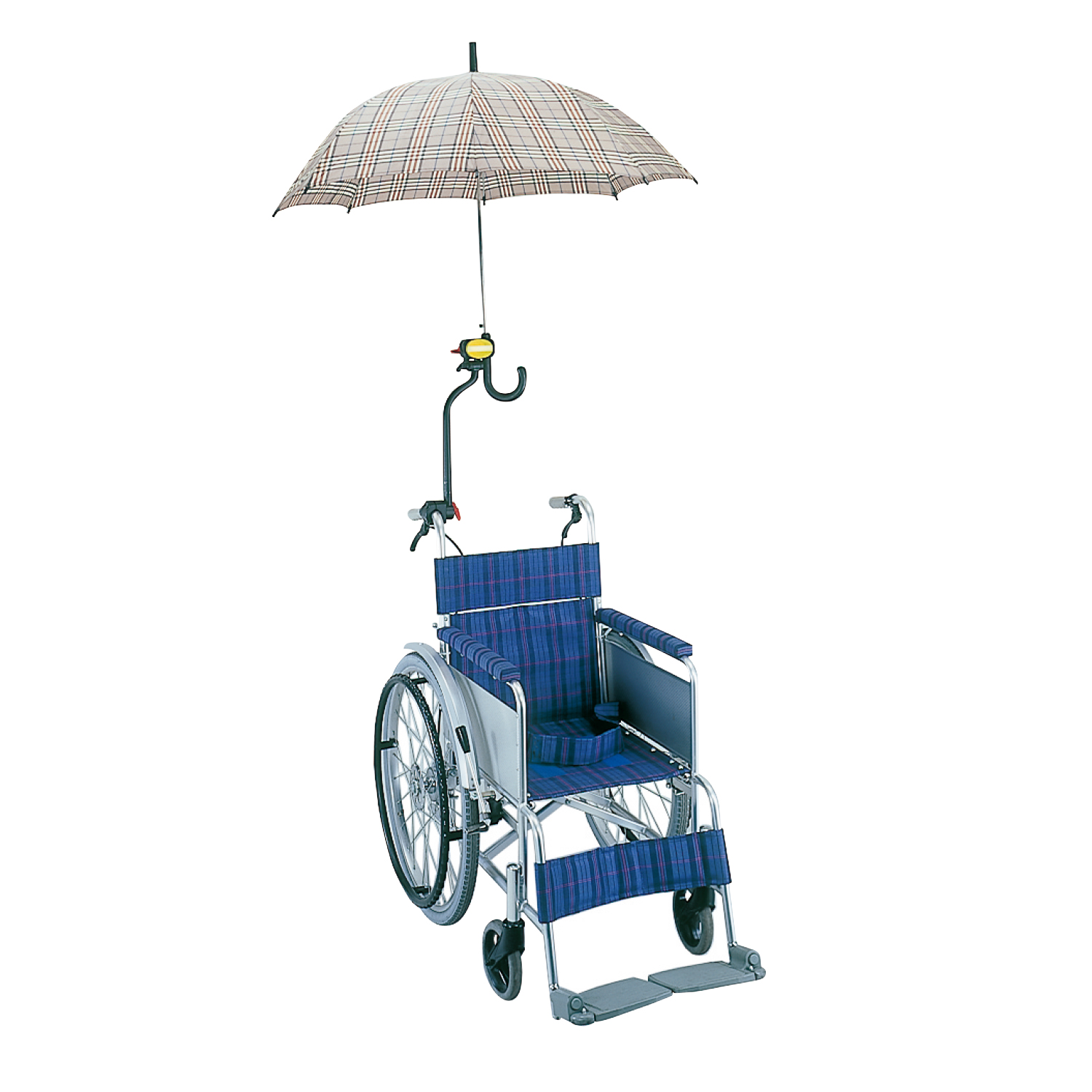

The Umbrella Catch is a product specially designed for wheelchair users, and friendly to both caregivers and care receivers.
Users can set the umbrella angle freely, and turn the holder 360° and set it downward when not used.
Two types of adapters are provided, either of which can be attached according to the type of handle or pipe in use.
Available to strollers.
Ideal as a protection from raindrops, intensive sunshine, and ultraviolet rays.
Friendly to caregivers and care receivers.
Provided with a reflective plate for accident prevention during use at night.

Kasa Catch NO.7  ¥5,300(JPY)

The Umbrella Catch is a product specially designed for wheelchair users, and friendly to both caregivers and care receivers.
Users can set the umbrella angle freely, and turn the holder 360° and set it downward when not used.
Two types of adapters are provided, either of which can be attached according to the type of handle or pipe in use.
Available to strollers.
Ideal as a protection from raindrops, intensive sunshine, and ultraviolet rays.
Friendly to caregivers and care receivers.
Provided with a reflective plate for accident prevention during use at night.

SPEC
● Color: Black
● Applications: Rollators, strollers, and wheelchairs
● Height adjustment: Not possible
● Angle adjustment: Rotatable 180° horizontally in the moving direction
● Suitable pipe diameter: 22 mm (for standard bicycles and electric bicycles) and 30 mm (for rollators and strollers)
● Suitable umbrella diameter: Approximately 10 to 22 mm
● Fixing method when not using umbrella: Set downward centering on the fixed position
● Product size: 160 × 410 × 110 mm
● Handle base size: 56 mm wide max.
● Weight (with bracket for L-type handle mounted): 570 g (including mounding cap bolts)
● Accessories: Bracket for L-type handle, 22-mm dia. thin bracket, four mounting cap bolts (M6 × 30), hex wrench, rubber plate (230 × 40 × 2 mm), rubber adapter (15.5 mm inner dia. and 22 mm outer dia.× 50 mm), installation instruction sheet
MADE IN JAPAN
Detail 1
Friendly to caregivers as well
(Usage and installation method)
• The umbrella can be freely set at any angle.
• The holder can turn 360°.
(Attach it to the handle on the right-hand side as shown in the photo)
• When the umbrella is not in use, loosen the red screw, and set the holder downward.

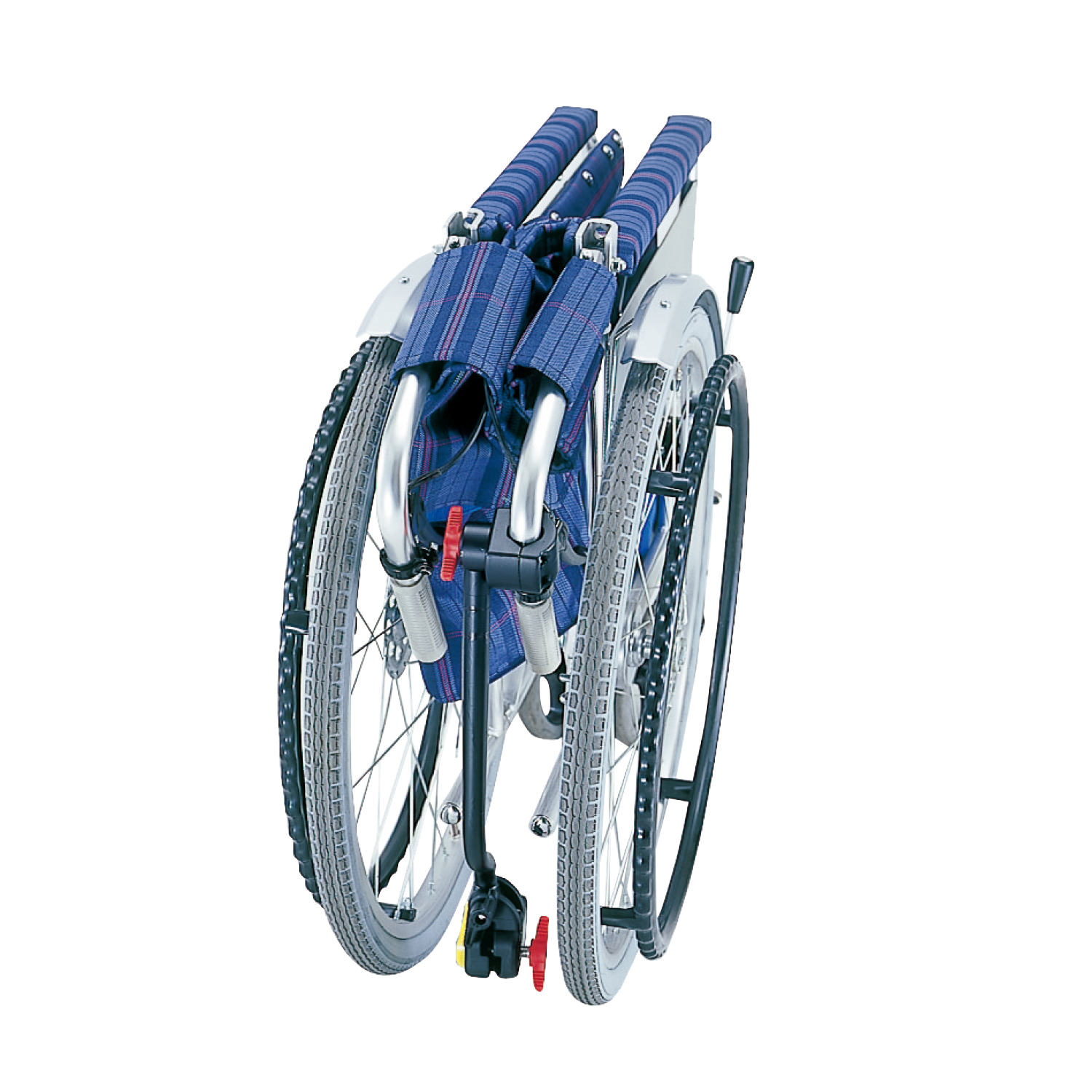

• The Umbrella Catch on a wheelchair can be folded compactly with just a single action and accommodated easily without detaching it from the wheelchair into the trunk of a vehicle.
WARNING: Do not hold the Umbrella Catch to lift the wheelchair. Doing so will damage the Umbrella Catch.

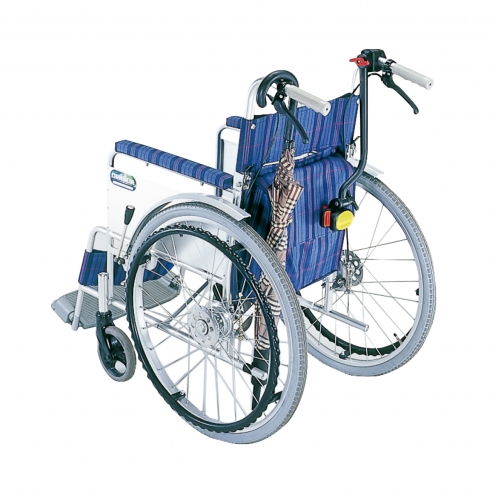

Easy to use for people who move their wheelchairs by themselves.
(Usage and installation method)

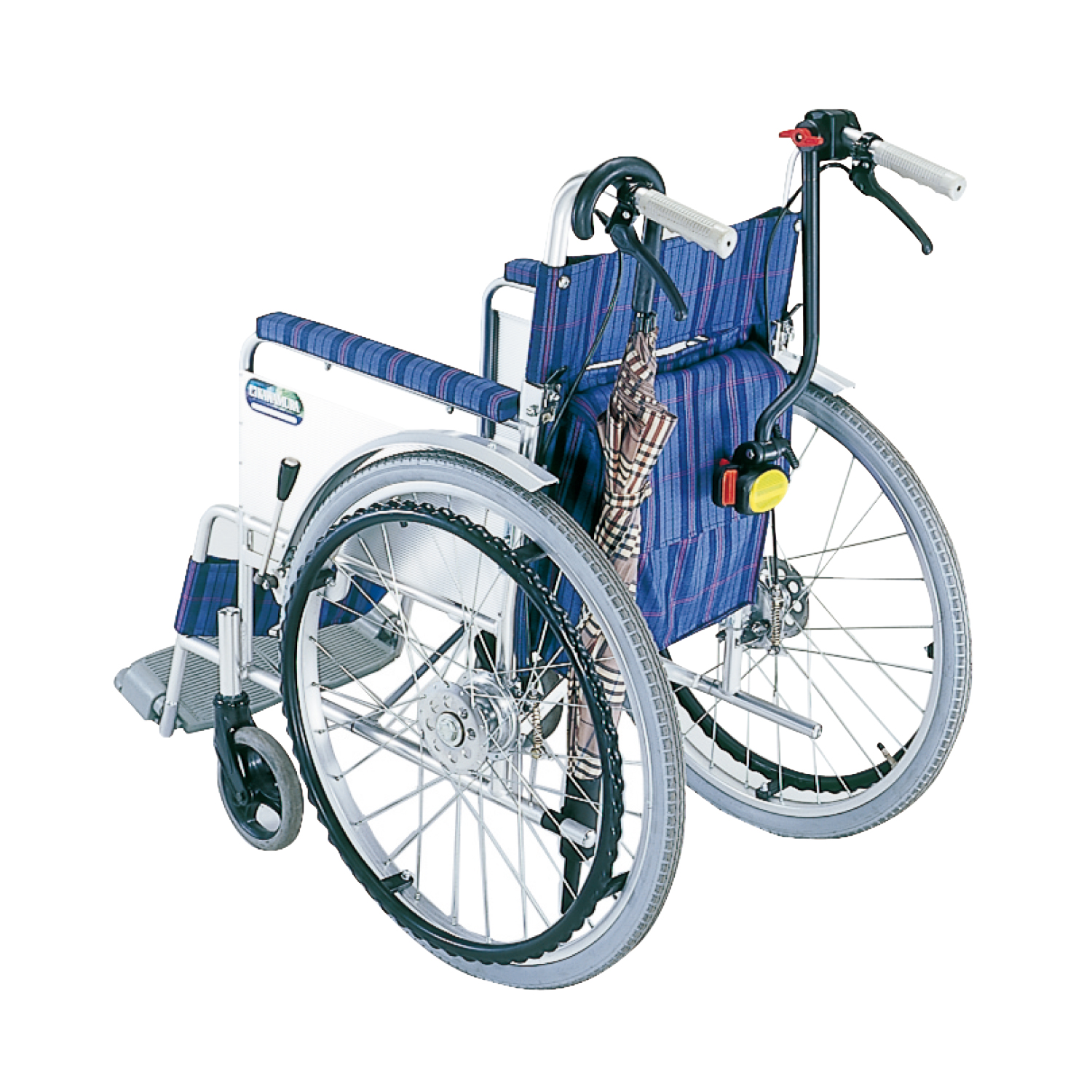

• Attach the Umbrella Catch to the pipe on the right-hand side so that the red screw will be placed on the outer side as shown in the photo.
• If the pipe is thin, attach the Umbrella Catch with the adapter sandwiched.
• In the case of heavy rain and wind, attach the rubber adapter so that the umbrella can be set lower.
Detail 2
• When the umbrella is not in use, loosen the red screw, and set the holder downward.
• The Umbrella Catch on a wheelchair can be folded compactly with just a single action and accommodated easily without detaching it from the wheelchair into the trunk of a vehicle.
 WARNING: Do not hold the Umbrella Catch to lift the wheelchair. Doing so will damage the Umbrella Catch.
3D view
Drag the mouse sideways on the image to rotate the image.
Drag the mouse sideways on the image to rotate the image.

スクロールはこちら
We can not accept your order from some countries at present because international post services are stopped due to COVID19 . If you can not choose your country during the order process, it means that the international post services do not accept the parcel to your country at the moment. Thank you for your kind understanding.
Product No Product name Price
(excluding tax)
quantity To shopping cart parts
90005 Kasa Catch NO.7  ¥5,300(JPY)
Out of stock
