Rod Line Markey

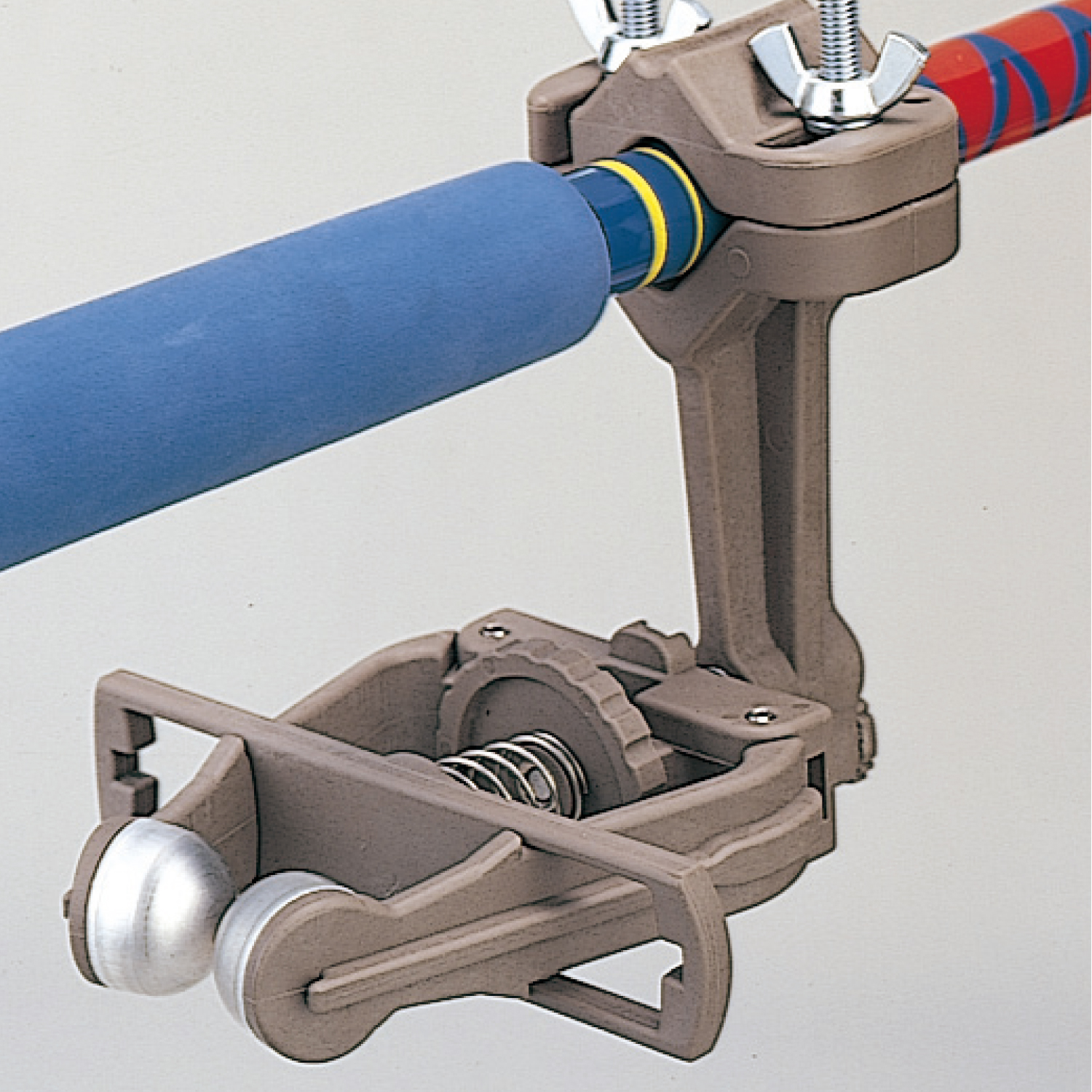

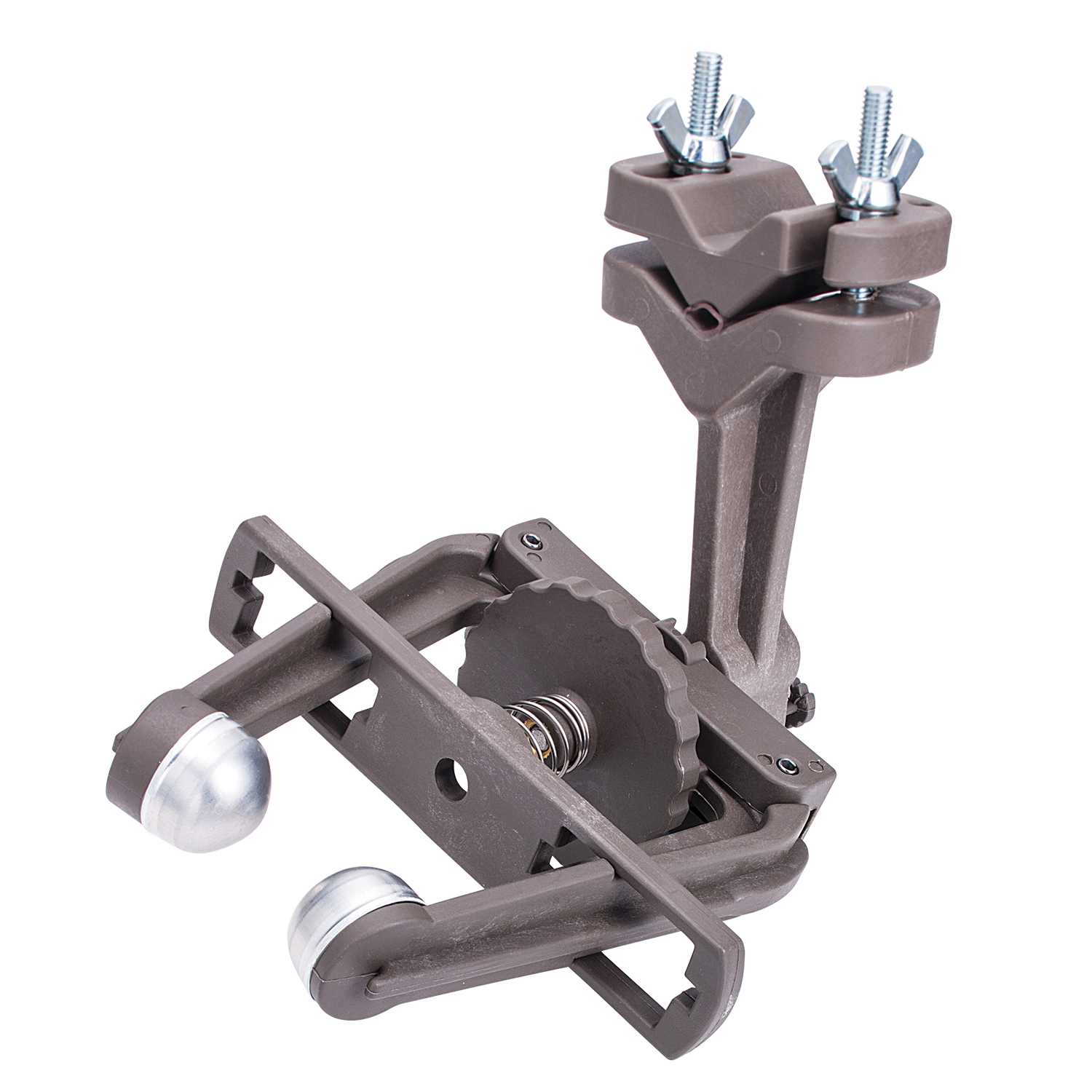

From trout rods (root dia.: 6 mm) to casting rods (root dia.: 30 mm). The Line Markey of rod mounting type.
A rotation system with automatic kink elimination, in which the spool rotates when the line is wound on the reel.
Eliminating frustration resulting from kinks and making the line last long.
OK to change lines on the fishing spot. Ideal for lures that use thin lines and for PE lines that may kink easily.
Bait reels are available as well.

Rod Line Markey　　¥3,400(JPY)

From trout rods (root dia.: 6 mm) to casting rods (root dia.: 30 mm). The Line Markey of rod mounting type.
A rotation system with automatic kink elimination, in which the spool rotates when the line is wound on the reel.
Eliminating frustration resulting from kinks and making the line last long.
OK to change lines on the fishing spot. Ideal for lures that use thin lines and for PE lines that may kink easily.
Bait reels are available as well.

SPEC
● Size: 184 × 160 × 64 mm
● Weight: 272 g
● Spool maximum installation width: 80 mm; maximum diameter: 125 mm
* Up to six coupling spools with a diameter of 123 mm (e.g., Yotsuami Ultra Dyneema) can be attached (for a distance of 600 m)
● Maximum installation width: 6 to 30 mm
MADE IN JAPAN

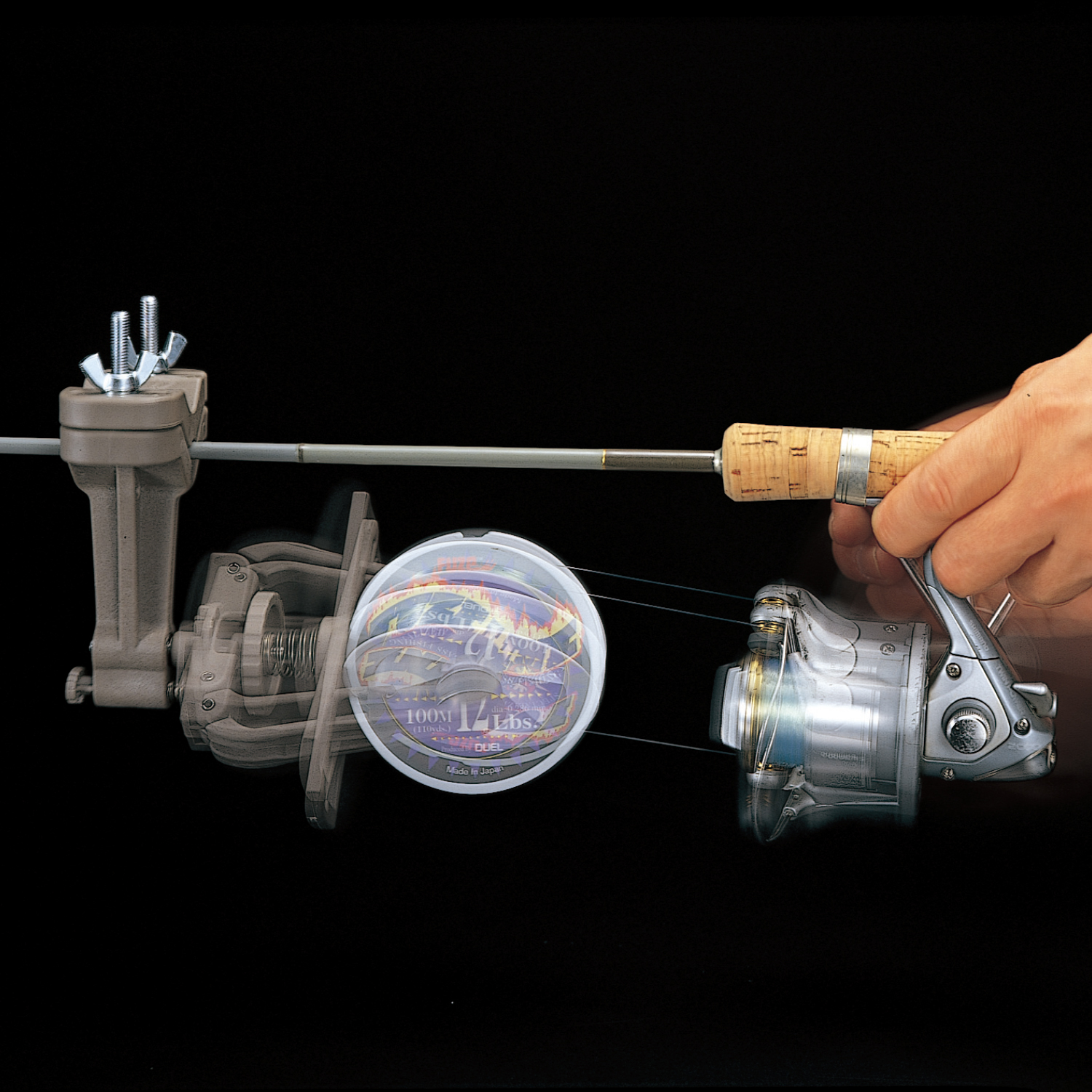

Winding method
1) Follow the mounting method and attach the product to the rod.
2) Pull out the fixing pin and rotate it 90° to secure the rotating holder.
3) Set the spool.
(In order to suppress rotation blur, sandwich the asymmetric arms A and B according to the unevenness of the center of the various spools by referring to the illustration on the right-hand side)
* Loosen the adjustment screw and open the arm.
* Tighten the adjustment screw to close the arm.
4) Adjust the tension.
* Tightening the adjustment screw will increase the tension.
5) Tie the line to the spool of the reel attached to the rod.
6) Pull out the fixing pin and rotate it 90° to free the rotating holder.
7) The setting is completed at this stage. Wind at the same speed from beginning to end at once.

● Precaution
Keep in mind that the rotating holder will keep turning with inertia and line entanglement will result by stopping winding midway or slowing down the winding speed.
Remove the spring and wind the rod tip facing downward if the spool is not of round type (e.g., a square spool), because the square part of the spool will come in contact with the guard.
3D view
Drag the mouse sideways on the image to rotate the image.
Drag the mouse sideways on the image to rotate the image.
