This option allows the installation of tools, such as the Uketaro, Chibi Lark, and Multi Stand 130, on the handrails of the boat.

[Supported Models]
• Chibi Lark/Chibi Lark Type S
• Multi Stand 130
• Free Stand/Free Stand 130
• Uketaro/Uketaro 130
• Super Uketaro/Super Uketaro 130
• Ukejiro/Ukejiro 130
• Super Ukejiro/Super Ukejiro 130
• Ryoujiku Ukejiro/Ryoujiku Uketaro 130

Handrail Mounting Adaptor　　¥1,800(JPY)

SPEC

● Size:
Fixed side adapter: 40 mm × 60 mm × 21 mm
Adapter on washer side: 40 mm × 56 mm × 34 mm
● Weight: 78 g (with large O-ring installed)
● Materials: Glass fiber reinforced plastic (body)/Ethylene propylene diene monomer (EPDM) (O-ring)

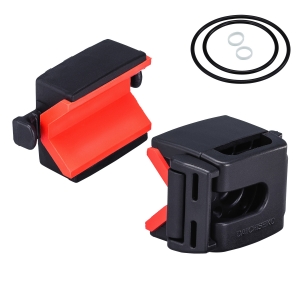

● Accessories: Adapter (fixed side and washer side) × one each, O-ring (a large one with an inner dia. of approx. 56 mm and a small one with an inner dia. of approx. 42 mm) × one each, and silicone band × two (one for a spare)
MADE IN JAPAN

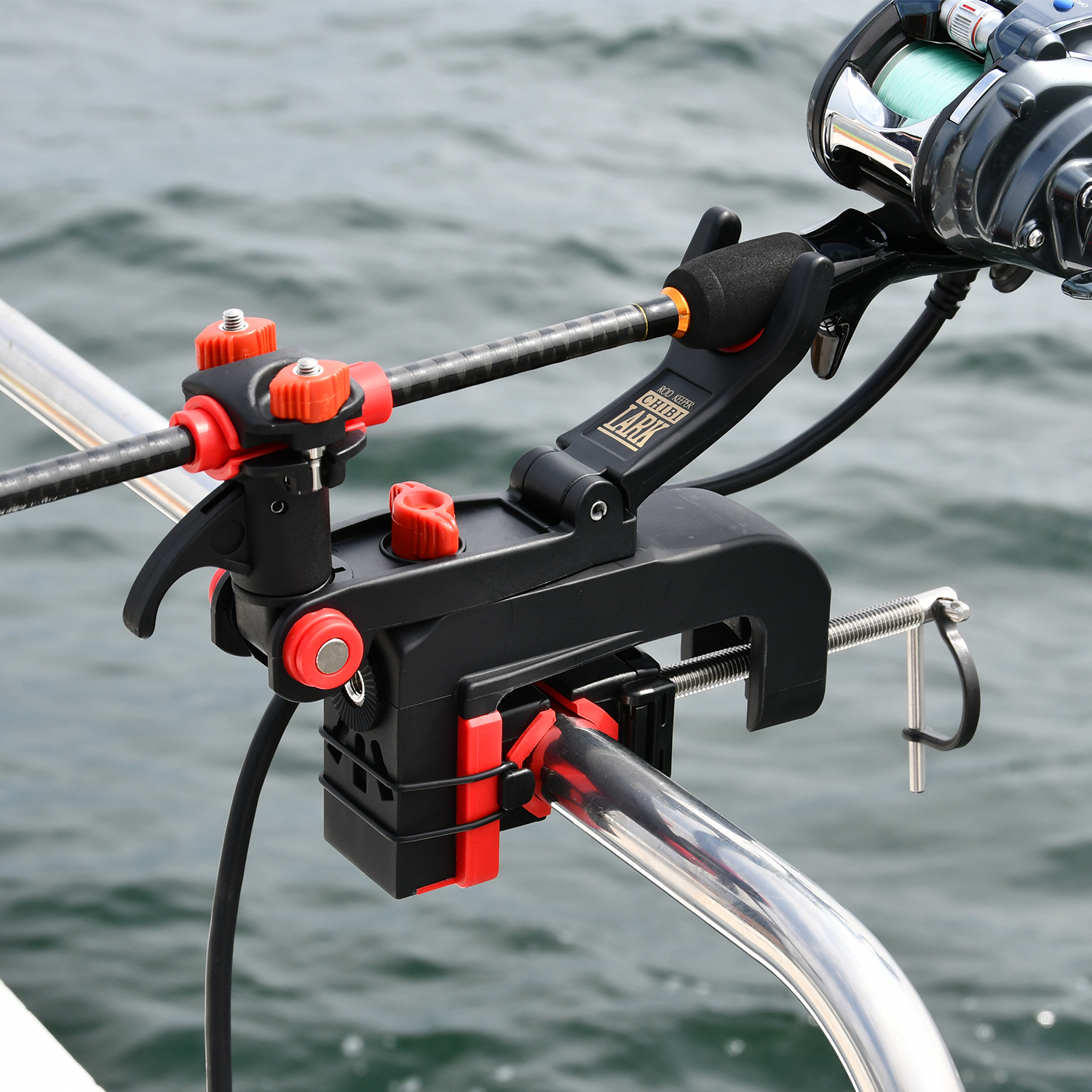

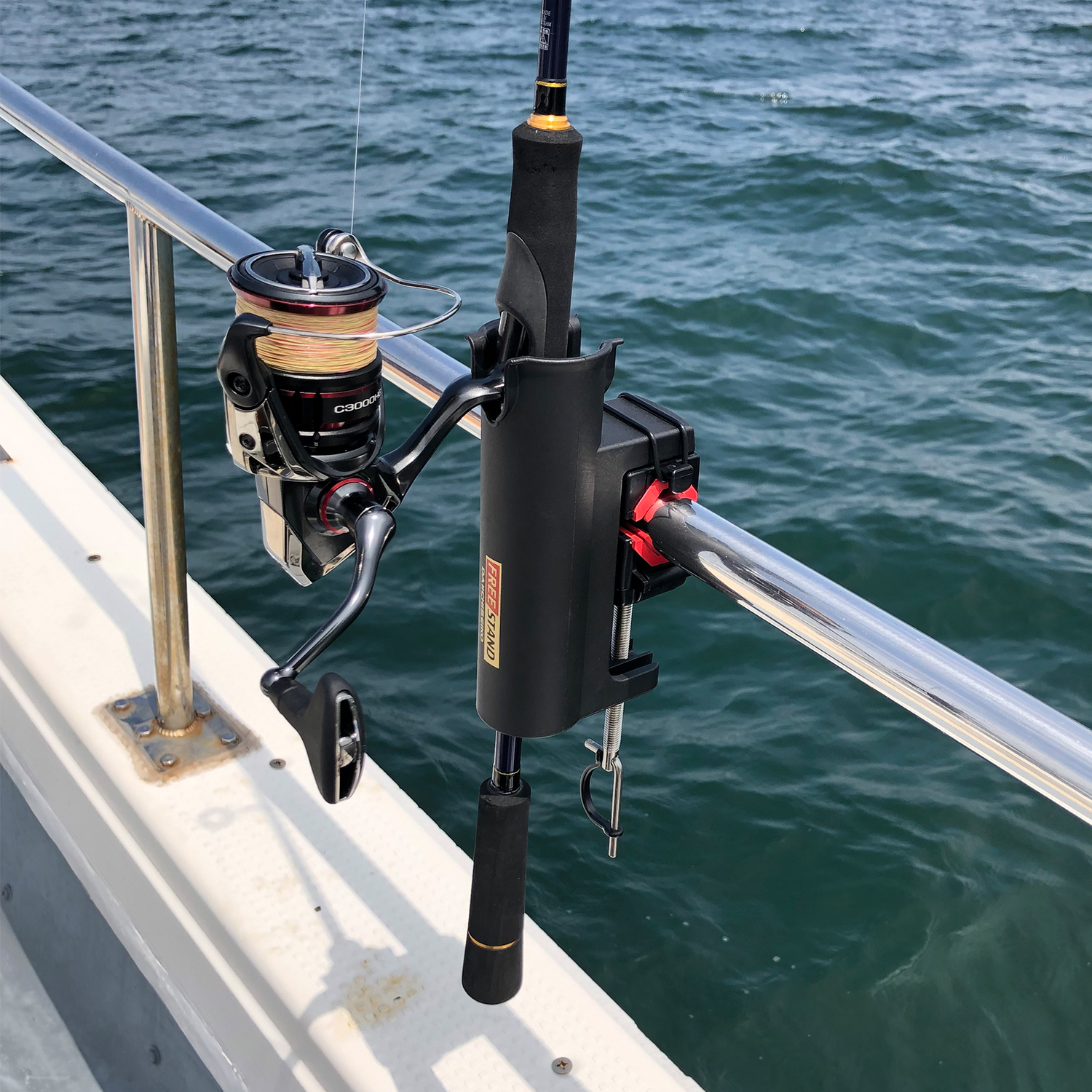

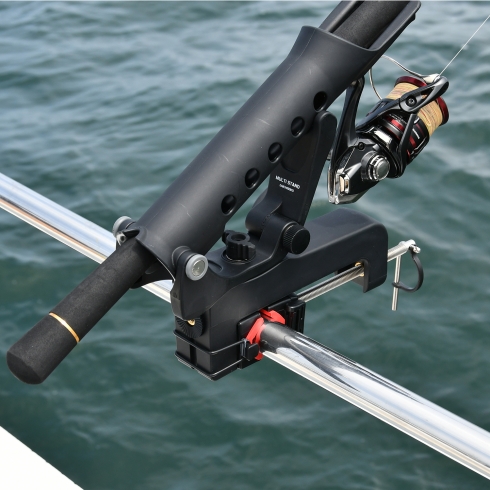

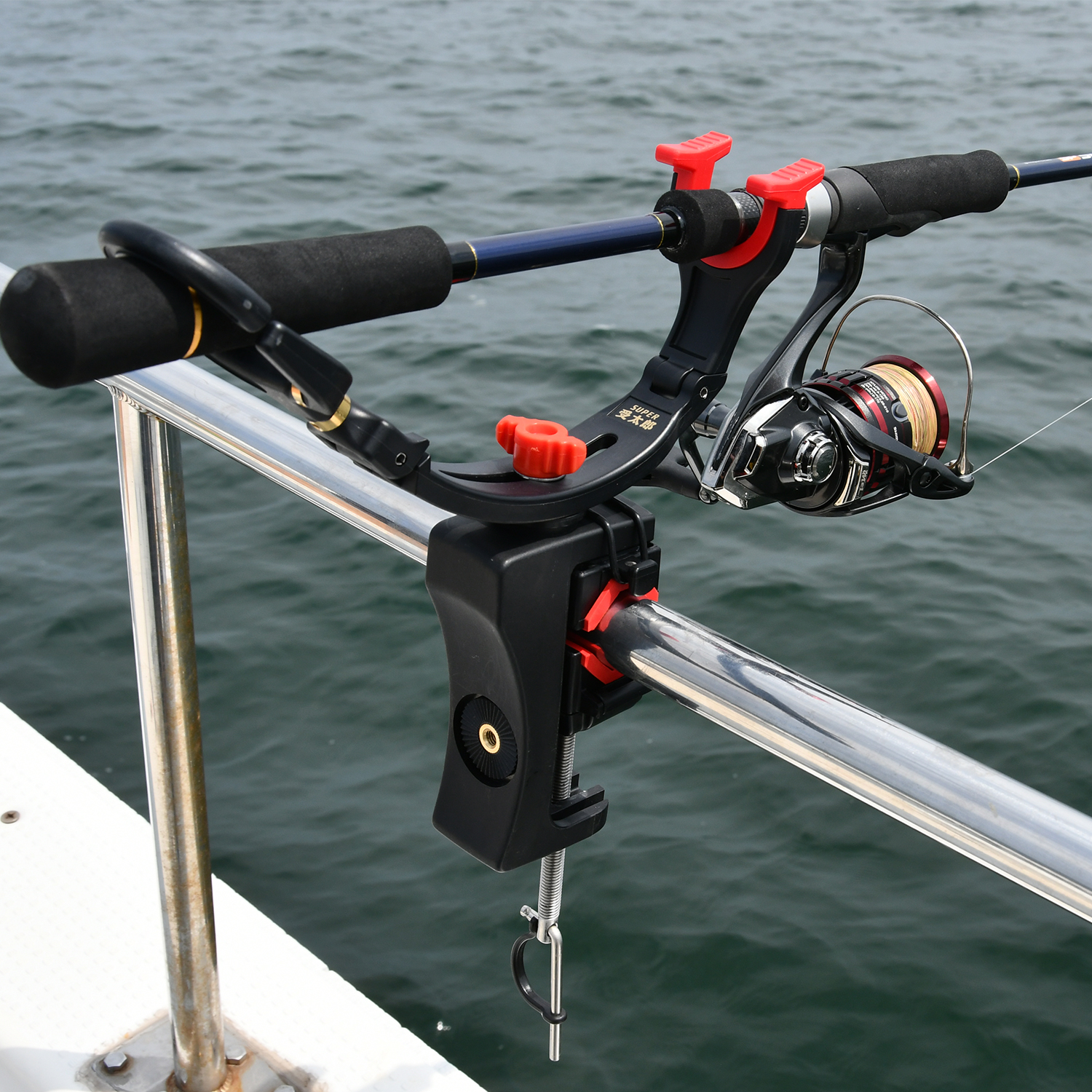

Usage example

Usage example

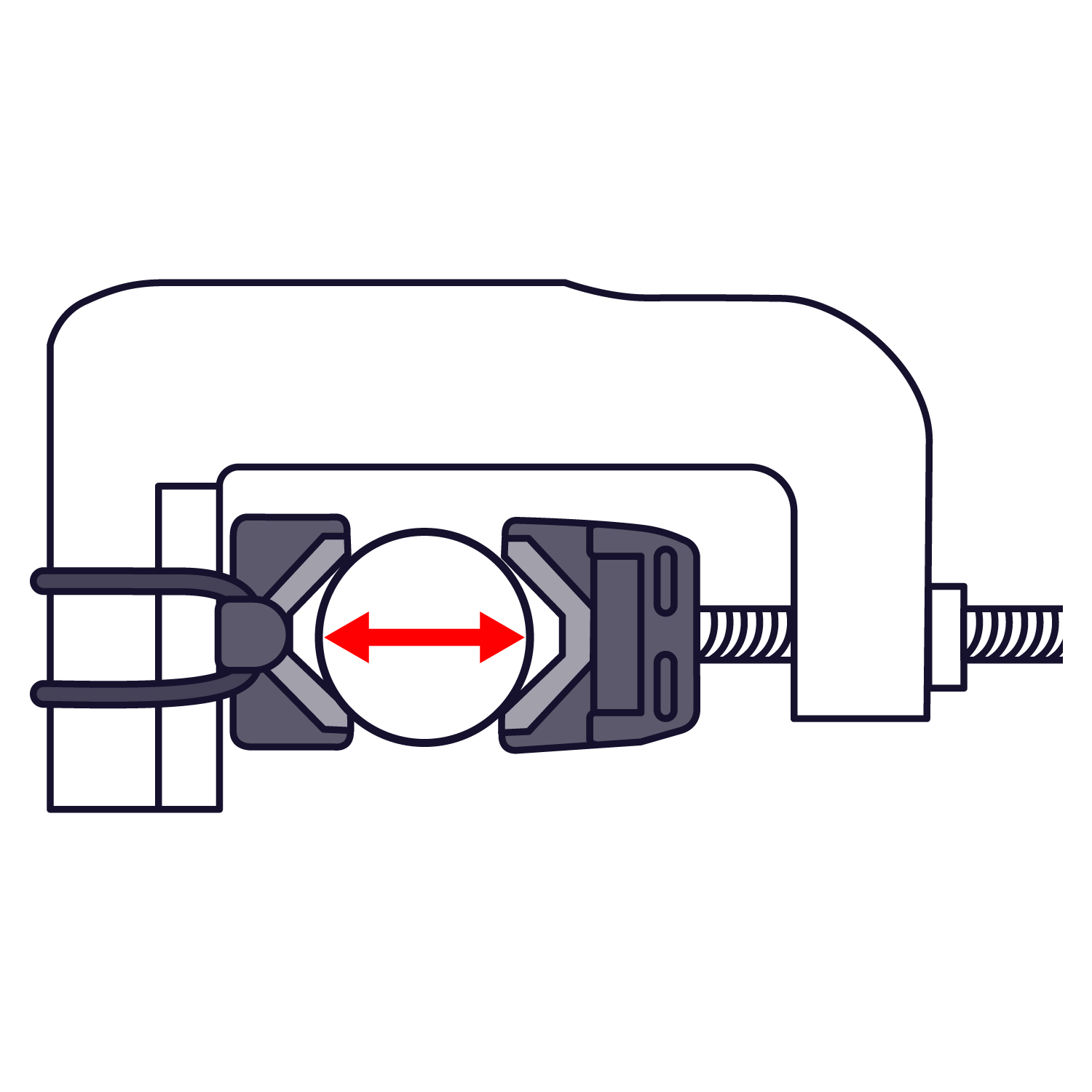

Mountable pipe diameter

[20 - 35 mm dia.]
Chibi Lark/Chibi Lark Type S

[20 - 40 mm dia.]
Multi Stand 130/Free Stand (130)
Uketaro (130)/Super Uketaro (130)
Ukejiro (130)/Super Ukejiro (130)
Ryoujiku Uketaro (130)

[How to use] 1. Select the O-ring.

[How to use] 1. Select the O-ring.

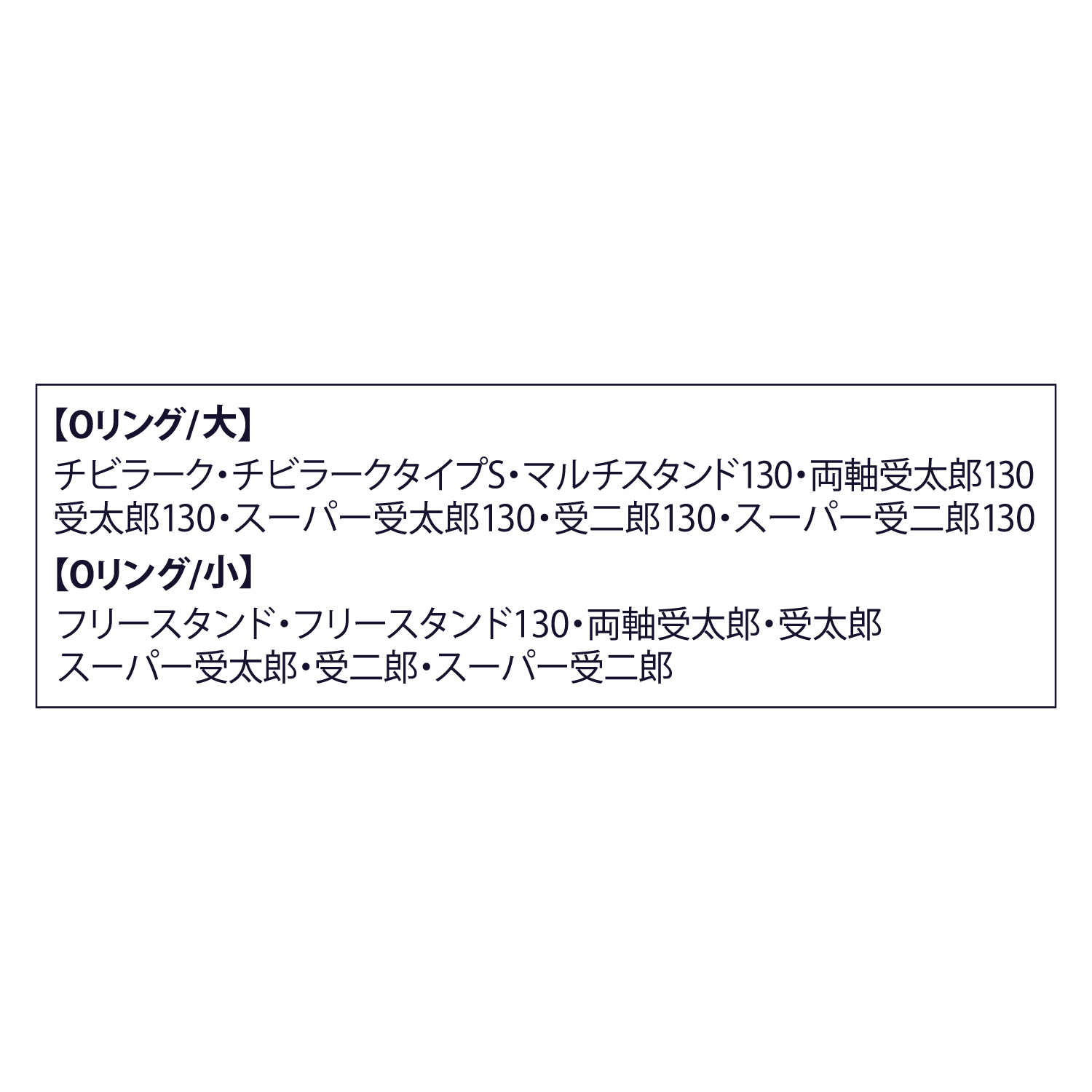

[Large O-ring]
Chibi Lark/Chibi Lark Type S/Multi Stand 130
Uketaro 130/Super Uketaro 130/Super Ukejiro 130/Super Ukejiro 130/Ryoujiku Uketaro 130

[Small O-ring]
Free Stand/Free Stand 130 Uketaro/Super Uketaro/Ukejiro/Super Ukejiro/Ryoujiku Uketaro

[How to use] 2. Attach the O-ring to the adapter on the fixed side.

Use a silicone band to attach the O-ring to the fixed side adapter.

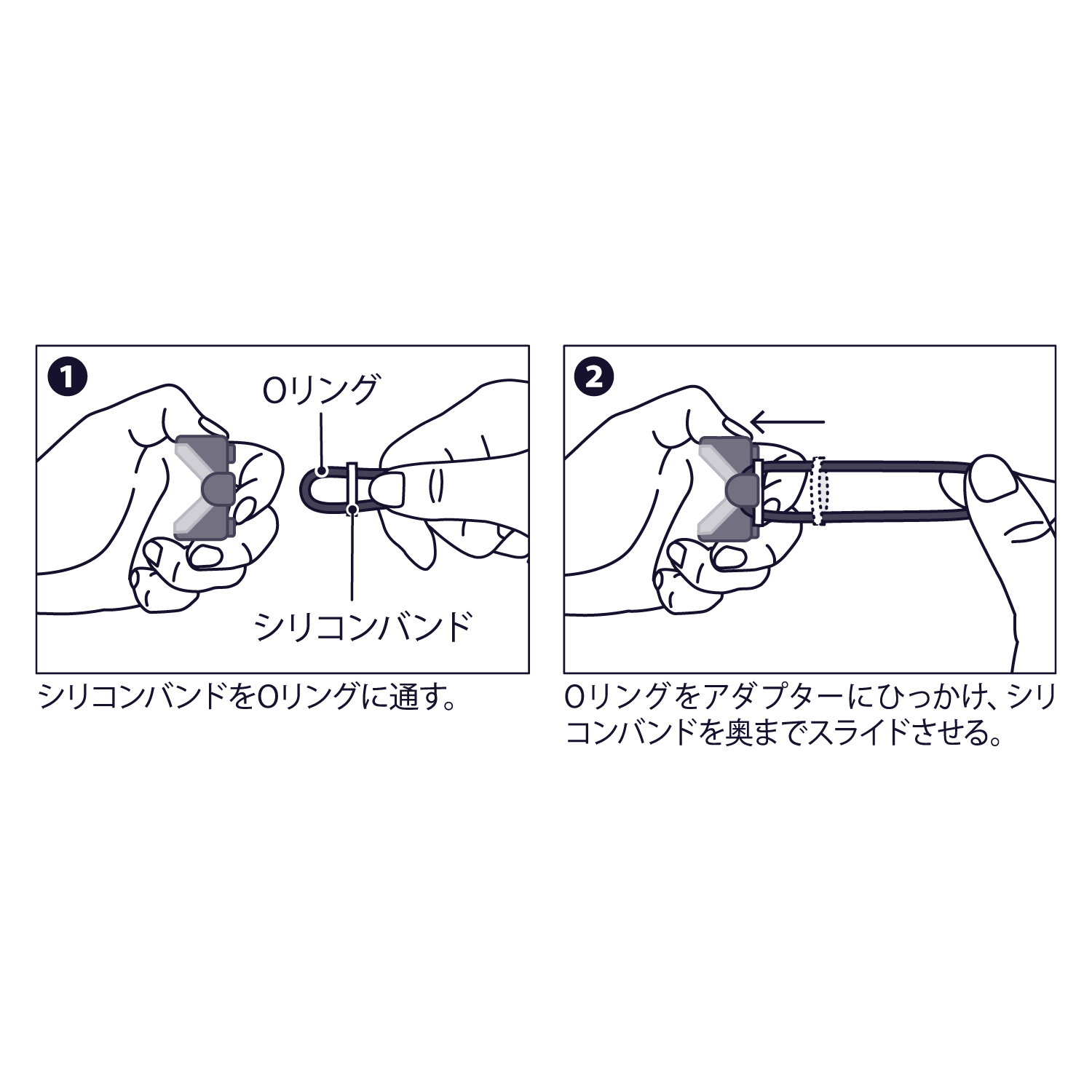

(1) Thread the silicone band through the O-ring.
(2) Hook the O-ring onto the adapter and slide the silicone band all the way inside.

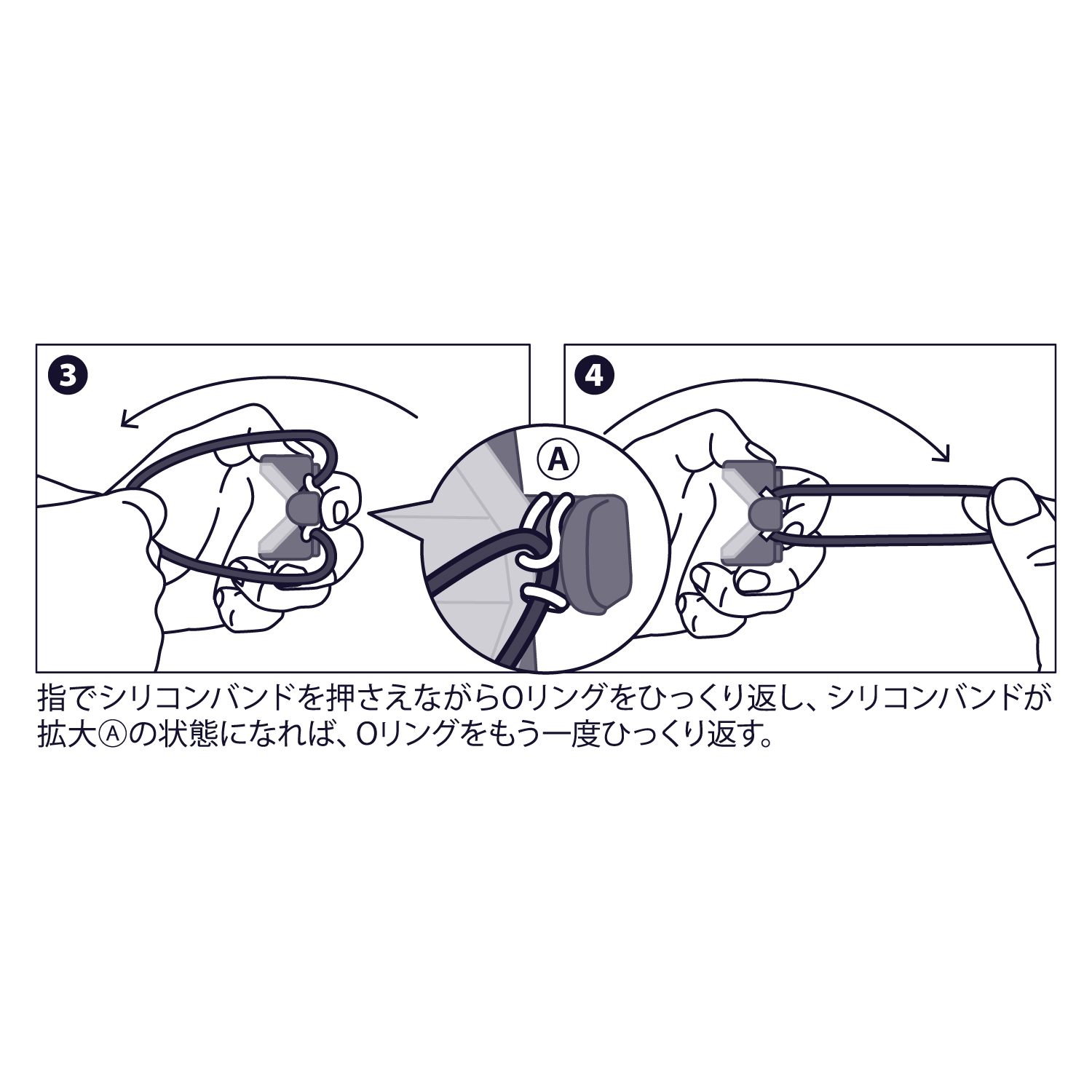

(3) Turn the O-ring over while holding the silicone band with your fingers. If the silicone band looks like the enlarged figure (A), turn the O-ring over again.

[How to use] 3. Attach the fixed side adapter to the clamp.

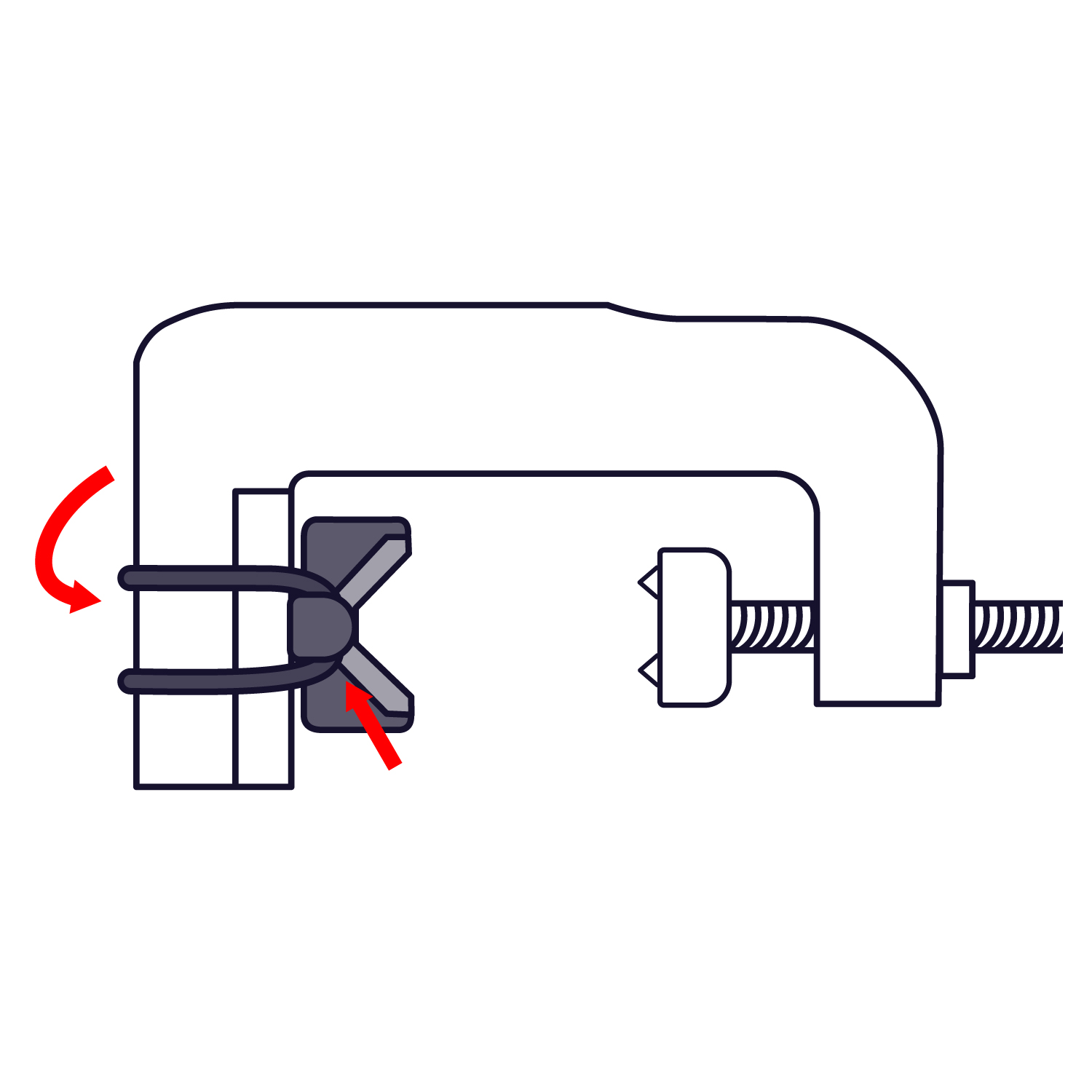

Attach the fixed side adapter to the clamp by turning the installed O-ring around and hooking the O-ring.

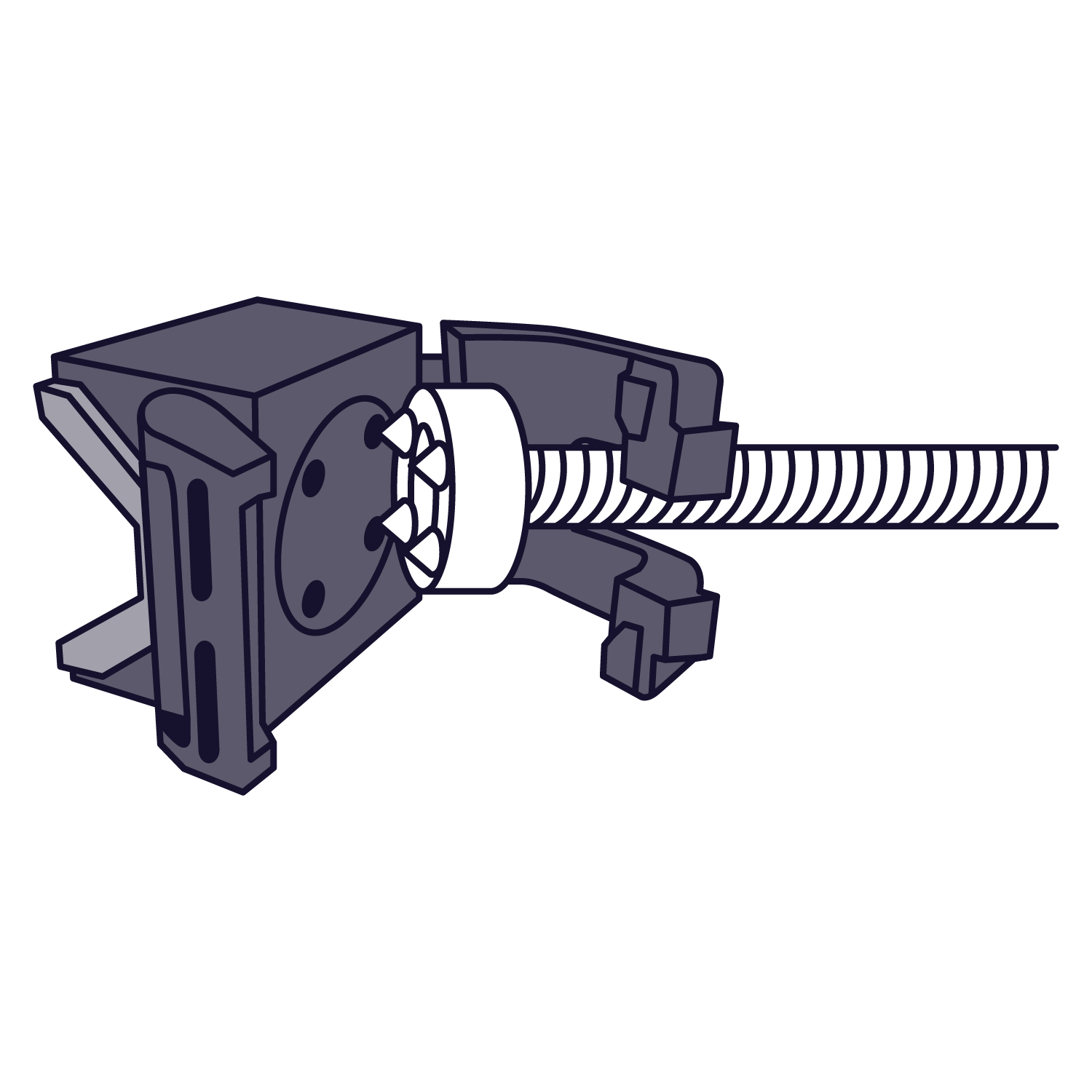

[How to use] 4. Attach the washer-side adapter to the clamp.

Unbuckle the buckle from the washer-side adapter and attach the adapter clamping to the washer.

[How to use] 5. Attach the rod keeper.

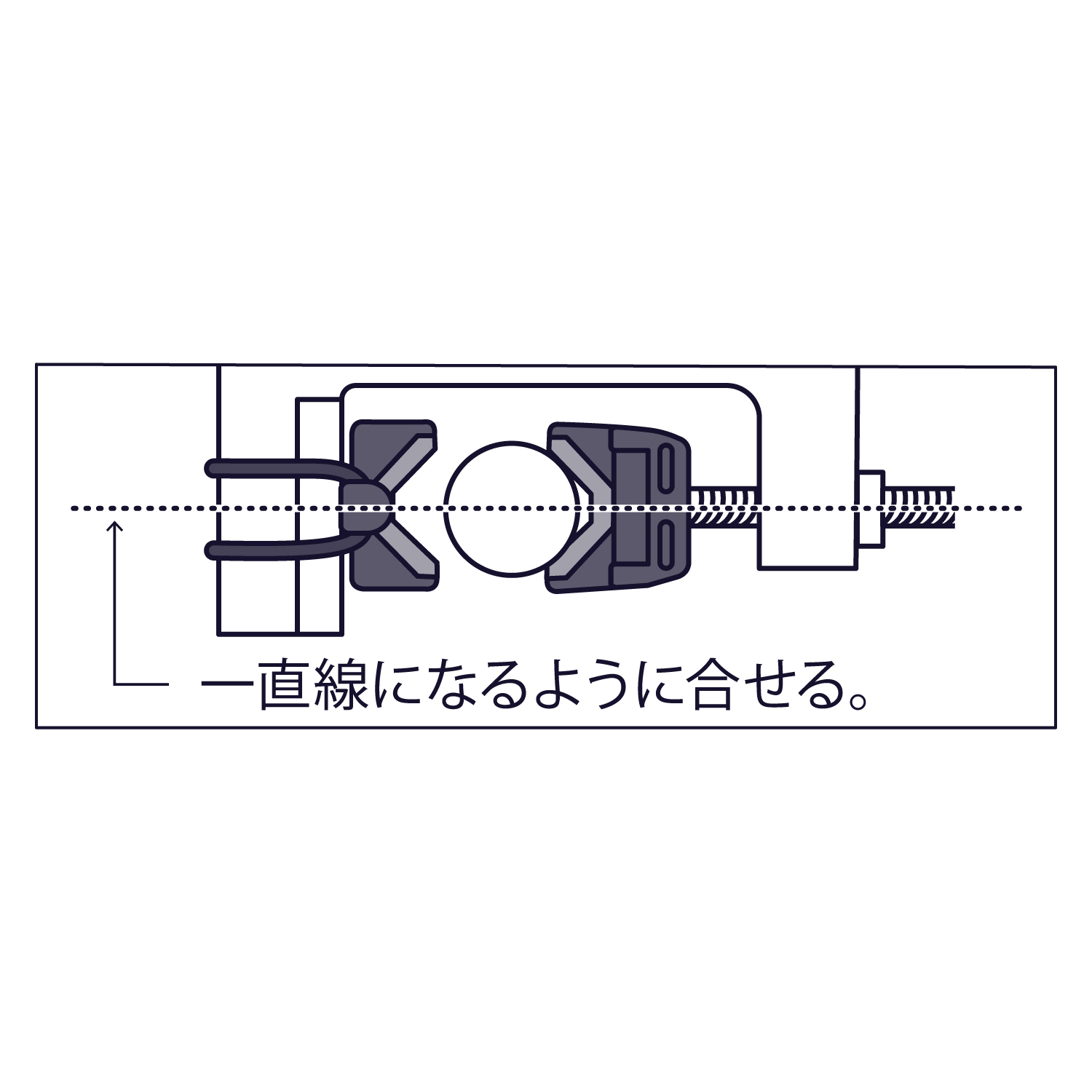

Tighten and secure the clamp screws while aligning the washer-side adapter with the boat’s side pipe structure, such as a handrail.

Make sure that the product is rigidly fixed in place before use.

* Both adapters are symmetrical in design, and there are no restrictions on orientation.

Caution!

● When removing the adapters from the pipe, hold the fixed side adapter by hand.
Failure to do so may cause the adapter to fall into the sea.
● The adapter may rotate on the pipe if a strong force is applied.
● For a clamp that can be mounted vertically or horizontally, mount the clamp horizontally.
● Do not tighten the screws excessively. No matter how much you tighten the screws beyond a certain point, there will be no change in the fixation force.
● The non-slip rubber will deteriorate under ultraviolet light. Therefore, do not store it outdoors.
● The O-ring and silicone band may break if scratched.

3D view

Drag the mouse sideways on the image to rotate the image.

Drag the mouse sideways on the image to rotate the image.

Video Clip

FAQ

• Is Handrail Mounting Adaptor suitable for Multi Stand 160?
• I would like to see a video on how to use the handrail mounting adapter.
